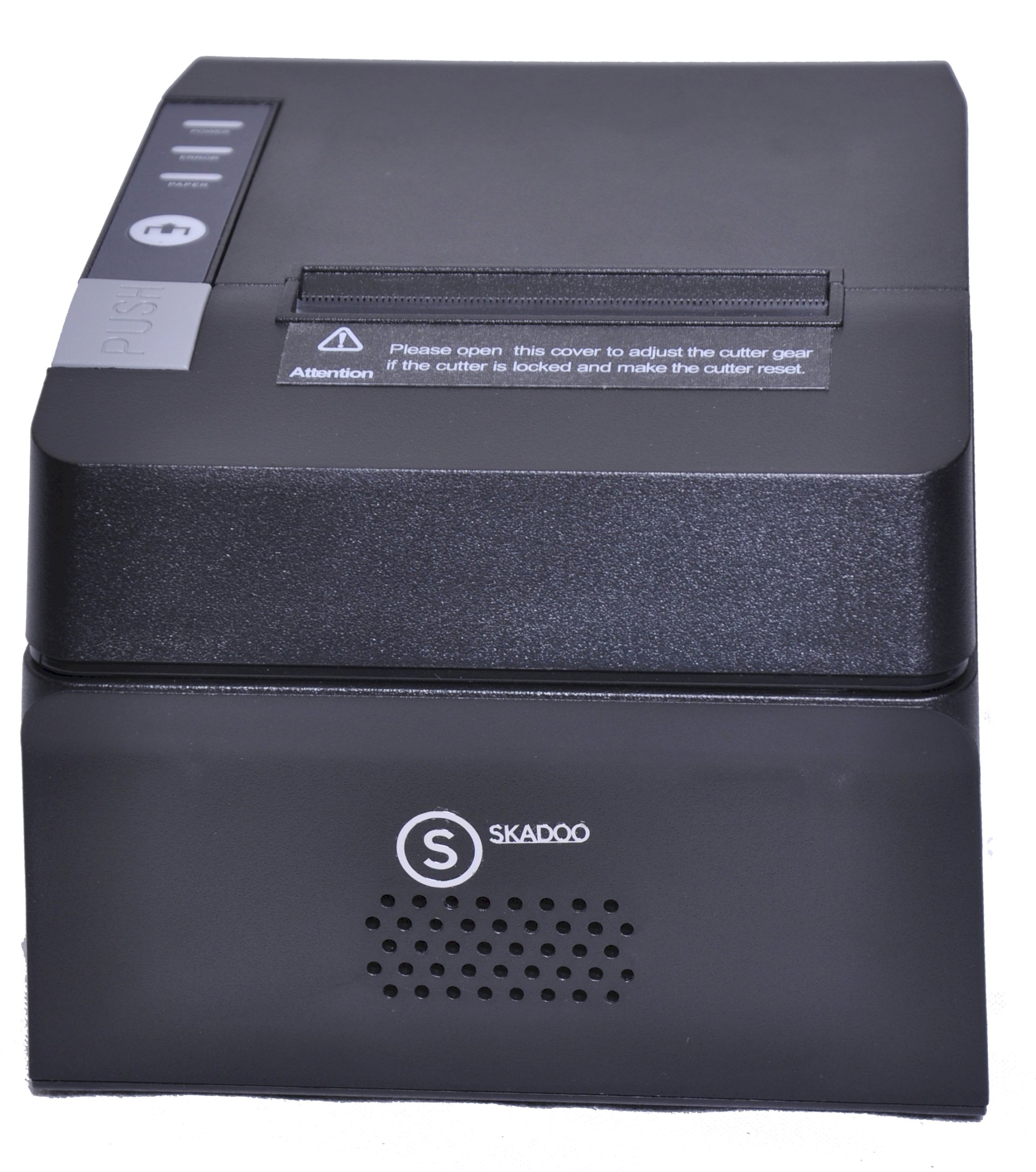

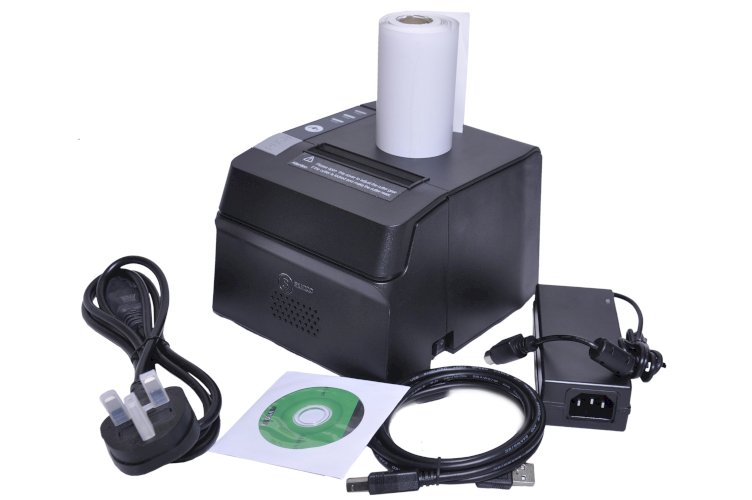

SKADOO POS80N 80mm Thermal Printer With Auto Cutter

Check this thermal printer model specification below

Introduction:

 Printing method                                                             Direct thermal

Print width                                                                         64/72mm

Column capacity                                                              576 dots/line 512 dots/line

Printing speed                                                                  200mm/s

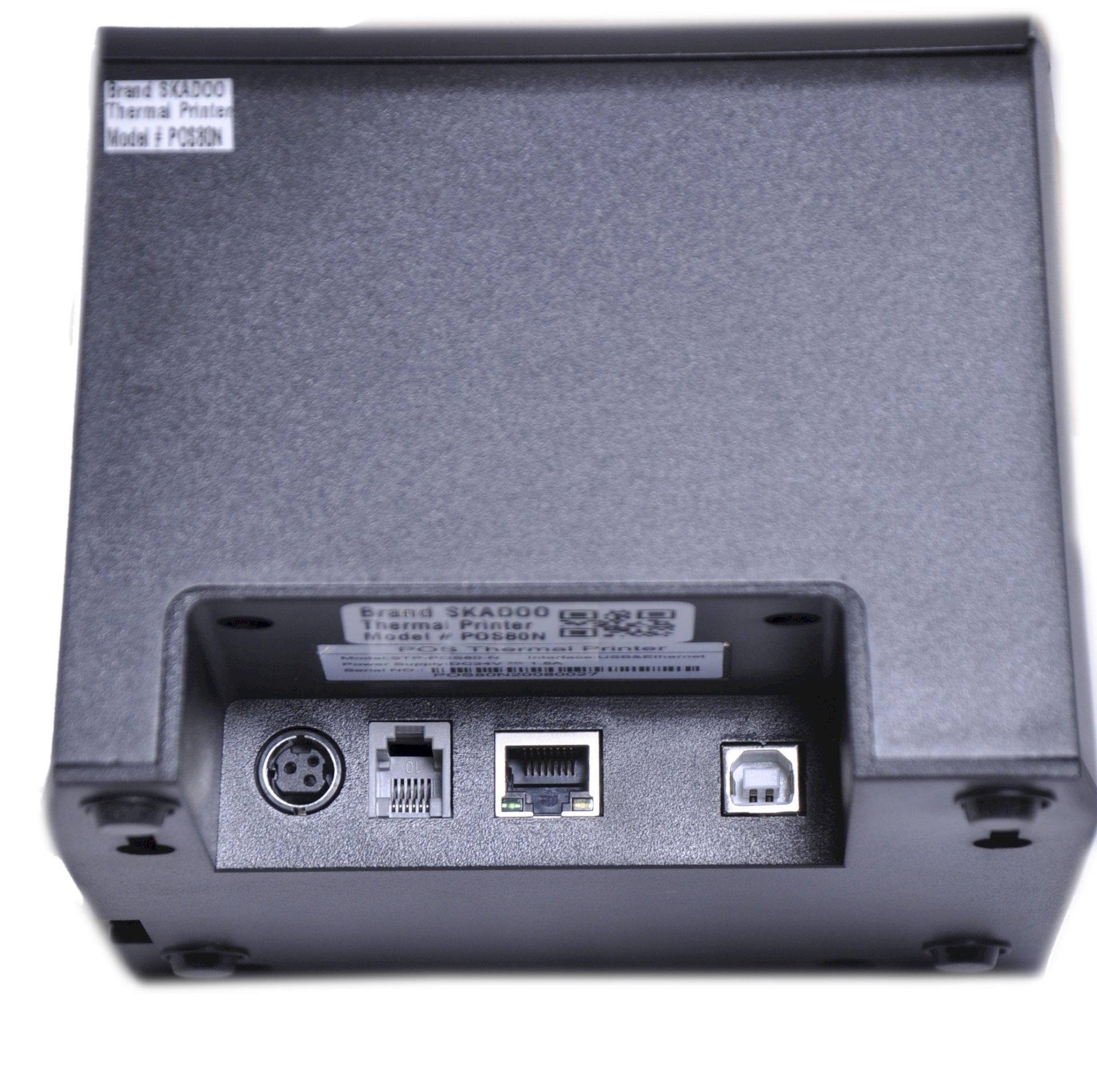

Interface                                                                             LAN+USB

Printing paper                                                                   79.5±0.5mm

Line spacing                                                                       3.75mm (Adjustable by commands)

Column number                                                               80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/

Chinese,traditional Chinese - 21 columns or 24 columns

Font                                                                                       ANK，Font A：1.5×3.0mm（12×24）

                                                                                                Font B：1.1×2.1mm（9×17）

                                                                                                chinese：3.0×3.0mm（24×24）

Character                                                                            PC347（Standard Europe）,Katakana

                                                                                                PC850（Multilingual）PC860（Portuguese）

                                                                                                PC863（Canadian-French）PC865（Nordic）

West Europe, Greek, Hebrew, East Europe, Iran, WPC1252、PC866（Cyrillic#2）, PC852（Latin2）, PC858, IranII, Latvian, Arabic, PT151（1251）

Barcode                                                                               UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/

                                                                                                CODE39/ITF/CODABAR/CODE93/CODE128

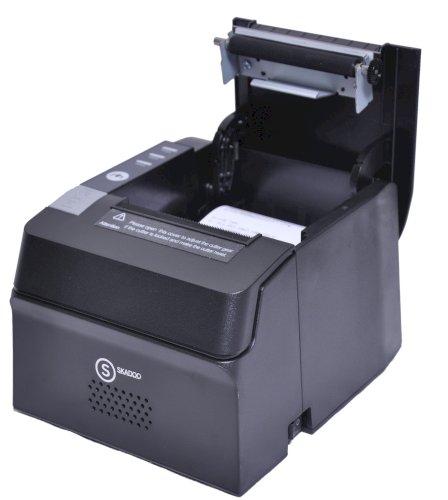

Auto cutting                                                                       half cutting

Input flash                                                                          64k bytes

NV Flash                                                                              256k bytes

Input                                                                                     AC 100-240V, 50～60Hz

Output                                                                                 DC 24V/2.5A

Output for cash drawer                                                 DC 24V/1A

Weight                                                                                 1.14 kg

Dimension                                                                          187x142x136mm（WxDxH）

Working environment                                                  temperature: 0～45℃,humidity: 10～80%

Storage environment                                                    temperature: -10～60℃, humidity: 10～90%

Cutter working life                                                         1.5 million times

print head working life                                                 200 km
