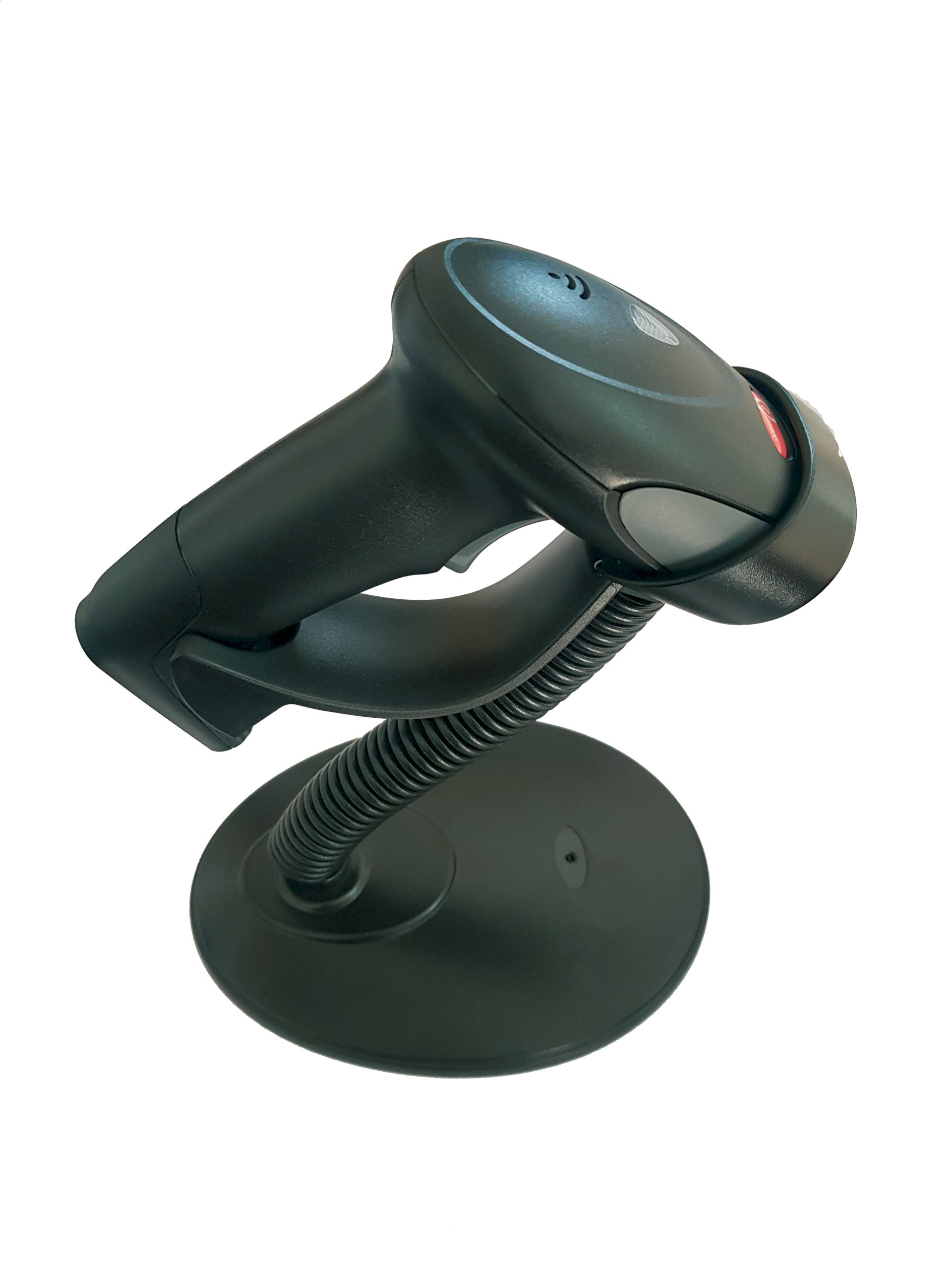

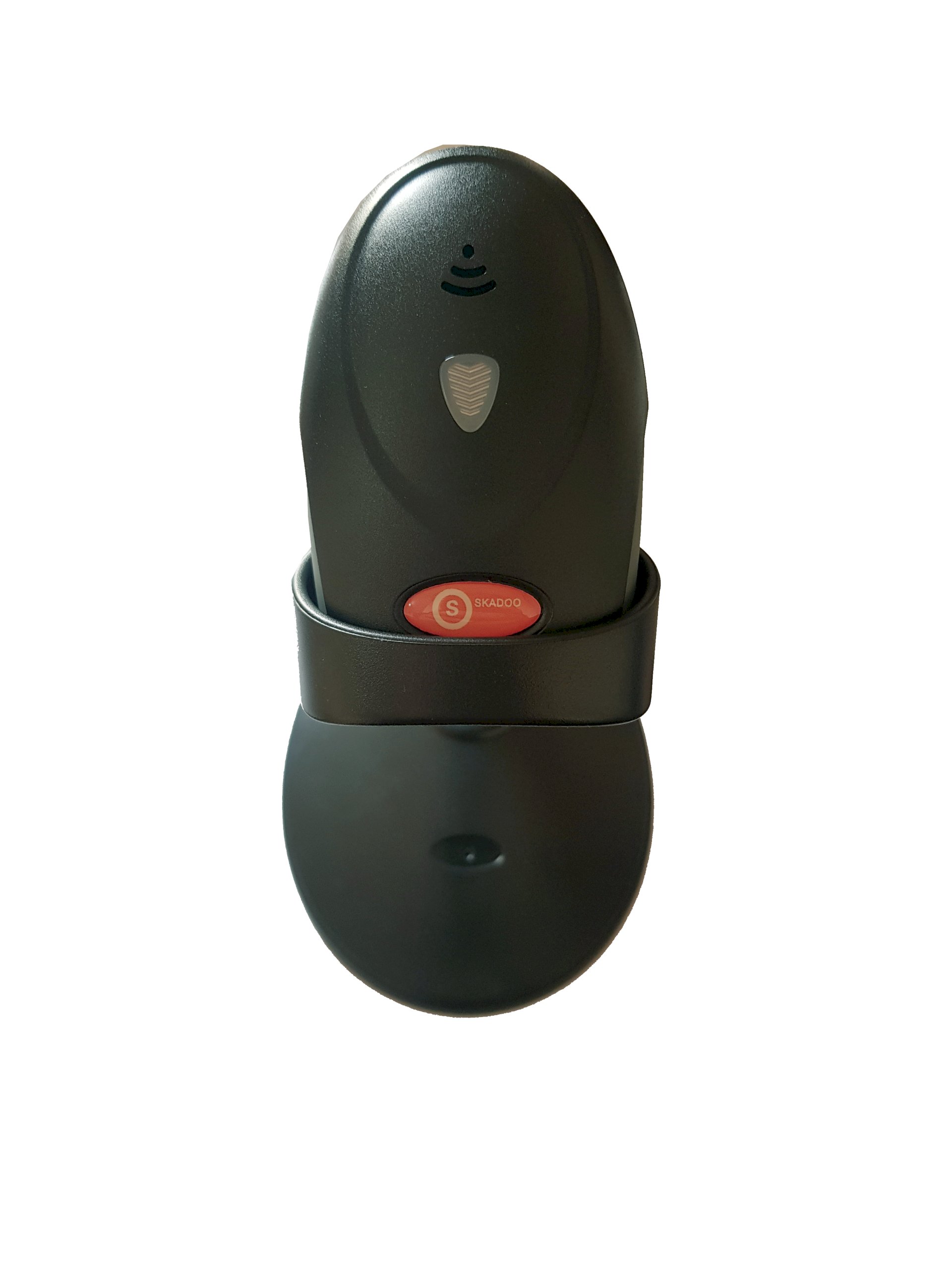

SKADOO S1000A Single Line Barcode 2D & QR Code Barcode Scanner With Stand

Check this barcode Scanner model specification below

Specification:

Imaging Sensor                                                                 CMOS(Image)

Resolution Ratio                                                              640×480

Image Resolution                                                            ≥ 4mil

Minimum Contrast                                                         ≥ 30%

Barcode Types                                                                  1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,

Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc.

2D PDF417,  QR Code, Data Matrix

Barcode Sensitivity                                                         Tilt  ±55°, Rotate ±360°, Deflection ±55°

Data Interface Port                                                         USB And Virtual USBCOM (RS232 optional)

Size(Length x Width x Height)                                   164×65×98mm

Weight                                                                                 138g

Indicator                                                                              Siren and LED light

Working Voltage                                                             DC5V

Current                                                                                                Working Current 170ma, Stand-by Current 25ma

Data Line                                                                             USB Data Line (1.8M)

Operation Manual                                                          1Piece

Storage Temperature                                                    -40°C ~ 60°C

Working Temperature                                                  0°C ~ 50°C

Relative Humidity                                                           0 ~ 95%

Height Range                                                                    1.5m

IP Rating                                                                              IP54
