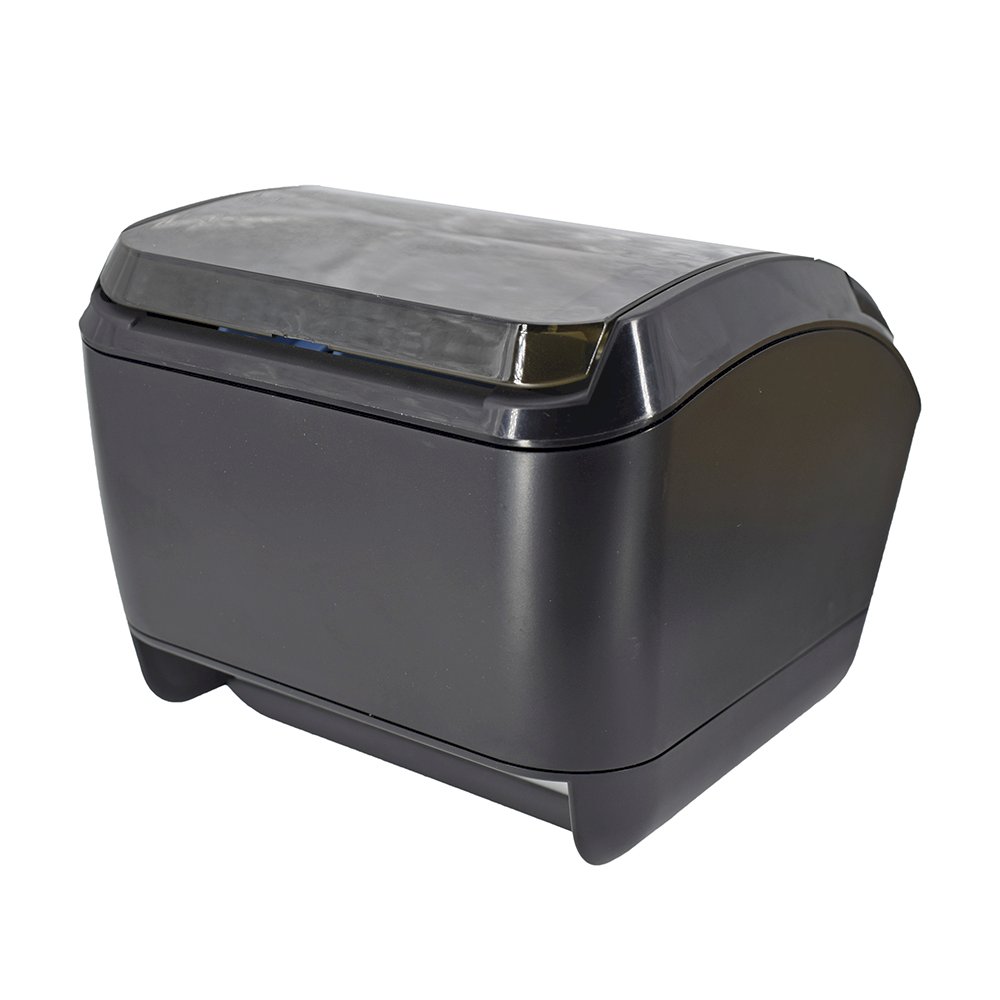

| S90L 80mm thermal Label and receipt printer | |
| Printing method | Direct thermal printing |
| Resolution | 203dpi |
| Cutter | Without auto cutter |
| Size | 193.5*145*135mm |
| Weight | 1kg |
| Printing speed | Label mold - 152mm/s; Receipt mold - 200~260mm/s |
| Printing density | 576 dots/line |
| Character set | Chinese - GB18030 |
| English, Japanese, Korea etc. custom (contact us for the latest information) | |
| Print font | ASCII Front A - 12x24 |
| ASCII Front B - 9x17 | |
| Chinese - 24x24 | |
| Character per line | Font A - 48 lines |
| Font B - 64 lines | |
| Chinese - 24 lines | |
| Paper width | 20~82mm |
| Paper roll diameter | Φ85mm |
| Paper loading | Easy paper loading |
| Barcode | 1D - CODE128 / 128M / EAN128 / CODE39 / 39C / 39S / CODE93 / EAN13 / EAN13+2 / EAN13+5 AN8 / EAN8+2 / EAN8+5 / 25 / 25C / CODABAR/ |
| POSTNET / UPC-A / UPCA+2 / UPCA+5 / UPC-E / UPCE+2 / UPC-E+5 / CPOST / MSI / MSIC / PLESSEY / ITF14 / EAN14 | |
| 2D - PDF417/QR CODE/DATA MATRIX | |
| Interface | USB, USB+Serial+Lan, USB+BT, USB+Wifi, USB+Serial+Lan+BT, USB+Serial+Lan+Wifi |
| Emulation | TSPL(Lable mode)/ ESC/POS(Receipt mode) |
| Driver | Windows XP /Win7/Win8 /Win10/MAC/Linux |
| Power supply | Input - AC 100V-240V/60HZ |
| Output - DC 24V/2.5A | |
| Cash drawer control | Yes |
