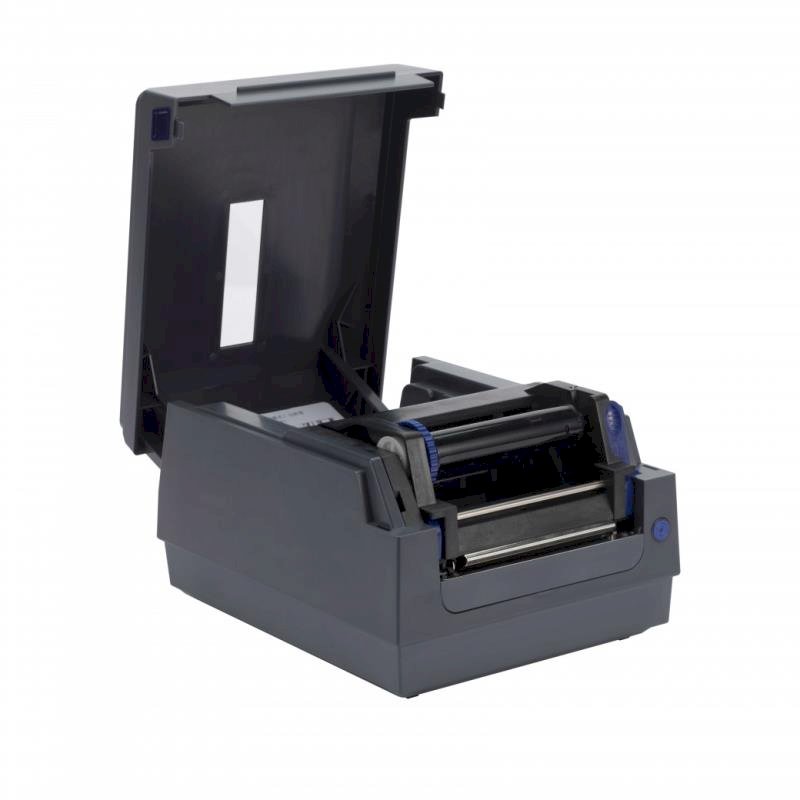

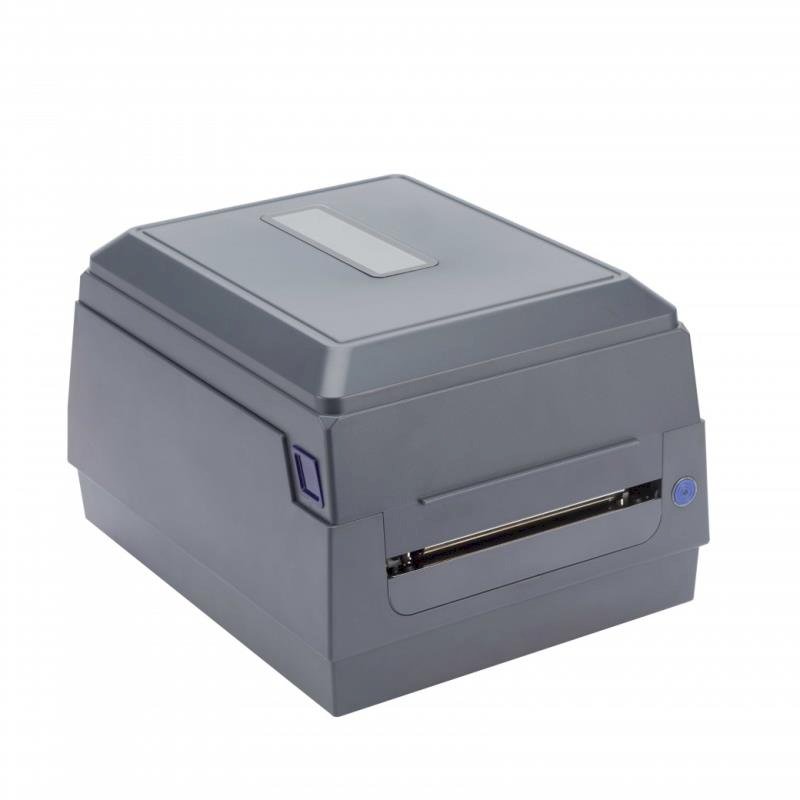

SKADOO S4ITD Thermal Transfer Direct Thermal Barcode Label Printer

Check this barcode printer model specification below

Specification:

Resolution                                                         203dpi(High Resolution and High Speed)

Printing method                                              Thermal Transfer/Direct Thermal

Printing speed                                                  5 Inch/s

Max printing width                                         108 mm (4.25")

Max printing Length                                       1778 mm (70”)

Interface                                                             USB

CPU                                                                       32 bit RISC CPU

Dimension                                                          299 mm (D) x 235 mm (W) x 198.3 mm (H)

Weight                                                                 2.55kg

1D                                                                           Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11

2D                                                                           PDF-417, Maxicode, DataMatrix, QR code, Aztec

Ribbon Length                                                  Max 300M

Ribbon width                                                    127mm(5")

Min Media Roll ID                                           25mm

Media Paper Type                                           Continuous，gap，fan hold，blackmark

Media Rolling Up Method                           Printing side outward Rolling

Media width                                                      25.4 ~ 118 mm (1.0" ~ 4.6" )

Media Roll Core Size                                      25.4 ~ 76.2 mm (1 "~ 3 ")

Media Gap                                                         Min.2mm

Media Thickness                                              0.06 ~ 0.254 mm (2.36 ~ 10 mil)

Label Length                                                      10 ~ 1778 mm(0.39" ~ 70" )

Accessories                                                        External Media Holder (Optional)

Editing Software                                              Nice label SE

Driver                                                                   Windows2000、XP、Vista、Win7、Win8、Windows 10 Windows Server 2003&2008

Character Set                                                     GB18030(Simplified Chinese)

Print font                                                            ASCII Font A：12*24, ASCII Font B：9*24,  Chinese: 24*24.

Temperature                                                     Working：5-45°C, Storage：-10~50°C

Humidity                                                             Working：25%~85%；Storage：10%~90%

Input                                                                     AC 100-240V,1.8A, 50-60Hz

Output                                                                 DC 24V, 2.5A, 60W

Storage                                                                8MB Flash Memory/8MB SDRAM/Micro SD
