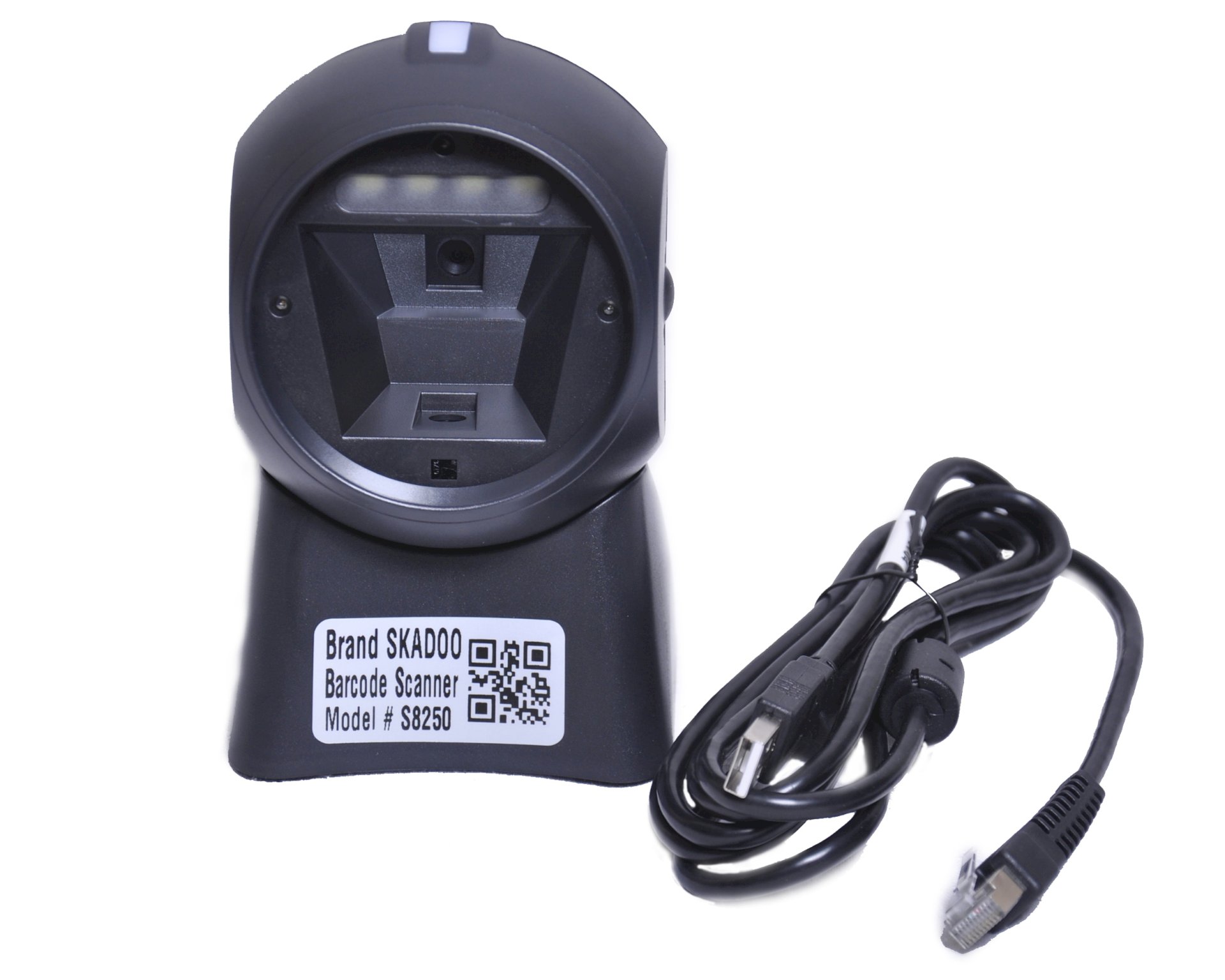

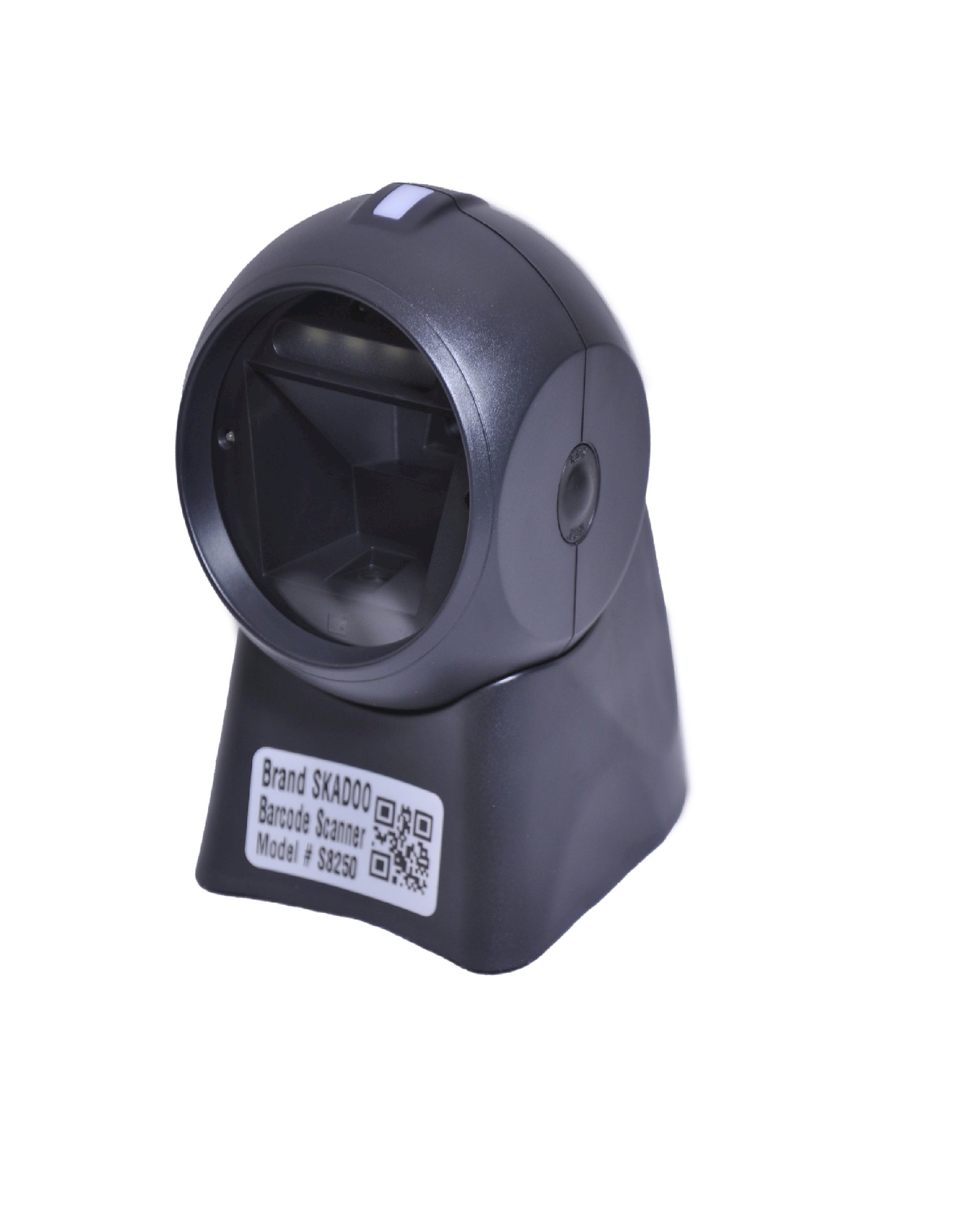

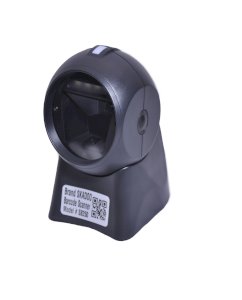

SKADOO S8250 Omni Directional Barcode 2D & QR Code Scanner

Check this barcode Scanner model specification below

Specification:

Imaging Sensor                                                                 CMOS(Image)

Resolution Ratio                                                              752*480 CMOS

Max Motion Tolerance                                                 2.5 m/s

Image Resolution                                                            >=3mil

Minimum Contrast                                                         >=30%

Barcode Types                                                                  2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200,  ECC000, 050, 080, 100, 140), HanXin code.

                                                                                             1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,

Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc.

Barcode Sensitivity                                                         Pitch ±55°, Roll ±360°, Skew  ±60°.

Data Interface Port                                                         USB HID-KBW，USB virtual  Port，USB HID-POS

                                                                                                 TTL-232，RS-232

Size(Length x Width x Height)                                   89*108*143mm

Weight                                                                                 245g

Unit Box Size                                                                     200mm*130mm*115mm

Carton                                                                                  20pcs/carton

Carton Size                                                                         690mm*420mm*255mm

Indicator                                                                              Siren and LED light

Working Voltage                                                             DC5V

Current                                                                                                Working Current 240ma, Stand-by Current 190ma

Data Line                                                                             USB Data Line (2M)

Operation Manual                                                          1Piece

Storage Temperature                                                    -40°C ~ 60°C

Working Temperature                                                  0°C ~ 50°C

Relative Humidity                                                           0 ~ 95%

Height Range                                                                    1.5m

IP Rating                                                                              IP54
