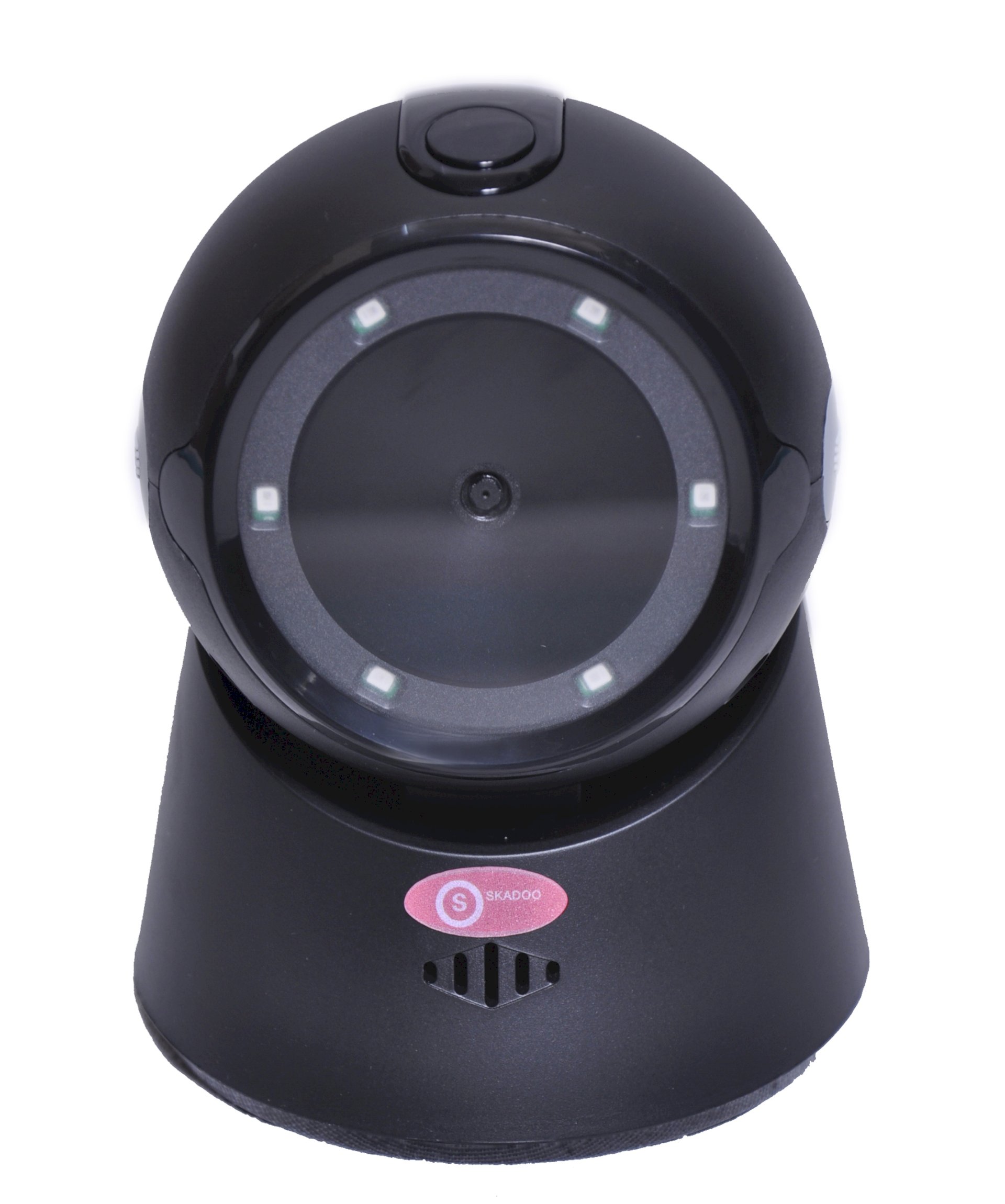

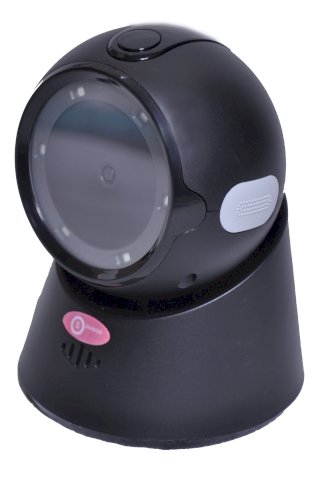

SKADOO S8300 Omni Directional Barcode 2D & QR Code Scanner
Check this barcode Scanner model specification below
Specification:
Imaging Sensor CMOS(Image)
Resolution Ratio 640*480 CMOS
Scan speed 250times/s
Image Resolution >=3mil
Minimum Contrast >=30%
Barcode Types 2D QR Code, Data Matrix, PDF417, MicroPDF417, Aztec Code, Codablock, MaxiCode
1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,
Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,
Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc.
Barcode Sensitivity Pitch ±55°, Roll ±360°, Skew ±60°.
Data Interface Port USB HID-KBW,USB virtual port,USB HID-POS
TTL-232,RS-232
Size(Length x Width x Height) 110mm*105mm*160mm
Weight 380g
Unit Box Size 185mm*125mm*120mm
Indicator Siren and LED light
Working Voltage DC5V
Current Working Current 220ma, Stand-by Current
Data Line USB Data Line (2M)
Operation Manual 1Piece
Storage Temperature -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 0 ~ 95%
Height Range 1.2m
IP Rating IP54
