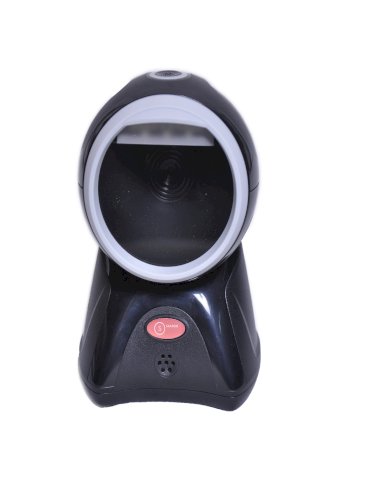

SKADOO S8350 Omni Directional Barcode 2D QR Code Scanner Reader

Check this barcode Scanner model specification below

Specification:

Barcode Reading Method                                            2D OMNI directional reading

Color                                                                                 Black+white

Resolution                                                                       4mils

Image (Pixels)                                                                 648 pixels (H)x488 pixels (V)

1D Barcode Scanning                                                      Support

2D Barcode Scanning                                                      Support

Scan Barcode on the Phone                                        Support

Scan Barcode on the Computer                                 Support

Reading indication                                                         Buzzer and LED Light

Data Transfer Method                                                   USB/RS232

Interface                                                                           RS-232; USB: USB COM, USBHID keyboard,

Length of data cable                                                       1.5m

Sensor                                                                                CMOS

Scanning method                                                            Manual trigger scan,auto-sensing scan,continuous scan

Scanning angle                                                                 Horizontal angle: 40°, Vertical angle: 30°

Operating Voltage                                                          5 VDC (+/- 10%)

Operating Current                                                           < 300 mA

Print Contrast                                                                    15%

Drop resistance                                                                                1.2m

Compatible System                                                        Android/ IOS/ Windows system

Scanning speed                                                                                300times/s

Motion Tolerance                                                           2.05M/s

Product Dimensions                                                       10.1 x 10.5 x 16.2cm

Product Weight                                                                                306g

Decoding Capability:

1D                                                                                           Code 39 (Code 32), Code 128, UPC/EAN/JAN, Code 93,

2D                                                                                           Aztec Code; Data Matrix; MaxiCode; QRCode;HANXIN;MicroQR Code

Optional Barcode:

1D                                                                                           China Post(Hong Kong 2 of 5), NEC 2 of 5, Code 11,MSI Plessey, GS1 Databar(RSS), Korea Post,

2D                                                                                           MicroPDF417, Aztec Code, Codablock, MaxiCode,Chinese Sensible Code

Depth of Field                                                                   1D / Linear Codes： 5 mils: 0 to 6cm / 0 to 2.4 in 7 mils: 0 to 10cm / 0 to 3.9 in

10 mils:0 to 11cm / 0 to 4.3in 13 mils UPC: 0 to 15cm / 0 to 5.9in

2D Codes: 6 mils PDF417: 0 to 8cm / 0 to 3.1in 10 mils Data Matrix: 0 to 11cm / 0 to 4.3in

10 mils PDF417: 0 to 13cm / 0 to 5.1 in 15 mils PDF417: 0 to 20cm / 0 to 7.9in

24 mils Data Matrix: 0 to 21cm / 0 to 8.4 in

Operating Temperature                                               0 to 40 °C

Storage Temperature                                                    -40 to 70°C

Humidity                                                                             5 - 95%
